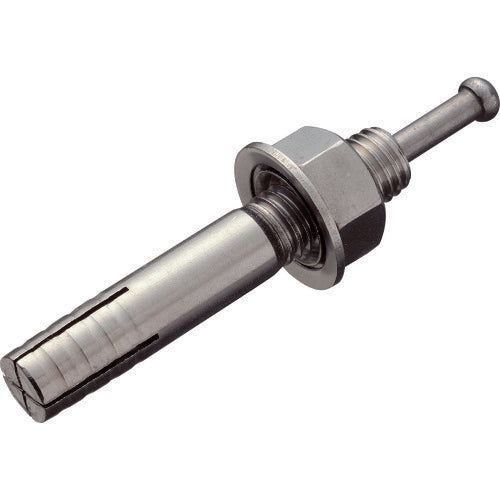

All Anchor SC-1610 SANKO

Since the construction will be done only by driving the core bar, you can easily check the completion of construction at glance.Because the main body and threaded portion have the same diameter, drilling to concrete is completed with a small diameter.For construction work, civil engineering work, electrical work, machine equipment construction etc.Nominal Designation of Thread:M16Total Length (mm):100Screw Length (mm):40Max Attachment Thickness (mm):20Pilot Hole Diameter (mm):17.0Maximum Tensile Load (kN):29.9Buried Depth (mm):60Stainless Steel (SUS304 type)The maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
