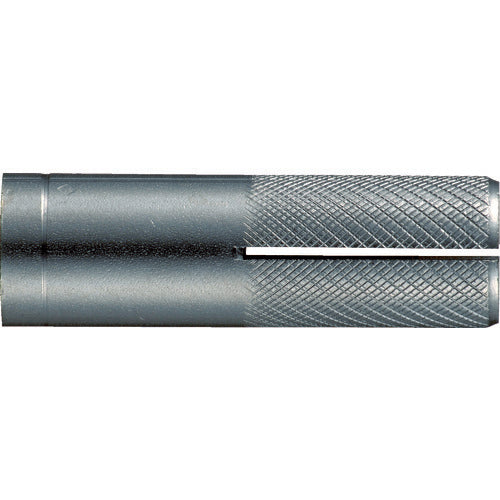

CT Anchor SCT-625BT TRUSCO

Internal cone driven type, variation on construction is less.Completion of construction can be checked by using special hand holder.Nominal Designation of Thread:M6Outer Diameter (mm):8.0Total Length (mm):25Screw Length (mm):10Drill Diameter (mm):8.5Maximum Tensile Load (kN):6.7Packaged in a packStainless Steel (SUS304 type)The maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].A special hand holder is required for construction.
