CT Anchor SCT-830BT TRUSCO

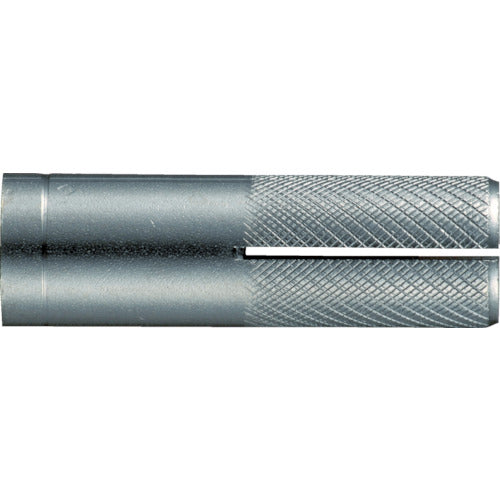

Internal cone driven type, variation on construction is less.Completion of construction can be checked by using special hand holder.Nominal Designation of Thread:M8Outer Diameter (mm):10.0Total Length (mm):30Screw Length (mm):12Drill Diameter (mm):10.5Maximum Tensile Load (kN):10.7Packaged in a packStainless Steel (SUS304 type)The maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].A special hand holder is required for construction.
