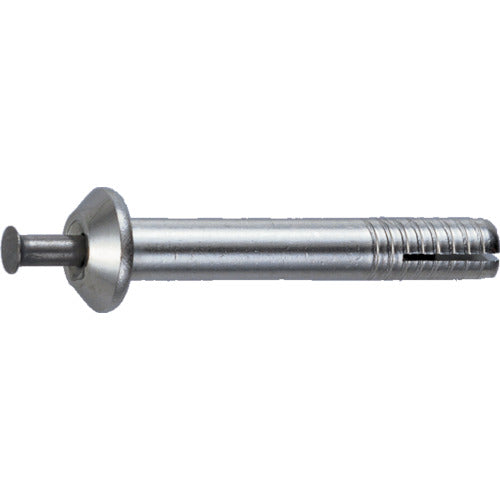

All Anchor T-Type ST-530BT TRUSCO
All Anchor T-Type ST-530BT TRUSCO
  • Load image into Gallery viewer, All Anchor T-Type ST-530BT TRUSCO
  • Load image into Gallery viewer, All Anchor T-Type ST-530BT TRUSCO

All Anchor T-Type ST-530BT TRUSCO

【order ID】4409850
【basic item number】ST530BT
【brand name】TRUSCO
【minimum order quantity】1Pack
【packages】10
【manufacturer name】TRUSCO NAKAYAMA CORPORATION
【Country of origin】Japan
【Weight】71.000G

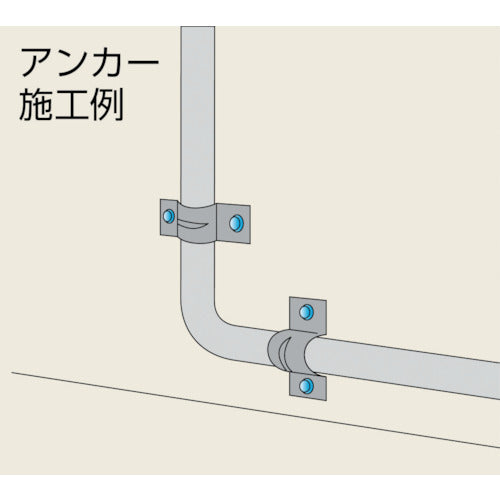

This anchor is optimum for constructions in the areas not requiring removal.Since the construction will be done only by driving the core bar, you can easily check the completion of construction at glance.Construction can be done directly from the top of the installation.Blind installation.For installation of light fixtures as well as wiring/piping/hanging metal fittings, etc.Outer Diameter (mm):5Total Length (mm):30Head diameter dk(mm):9Max Attachment Thickness (mm):10Maximum Tensile Load (kN):3.4Pilot Hole Diameter (mm):5.4Packaged in a packStainless Steel (SUS304 type)The maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
