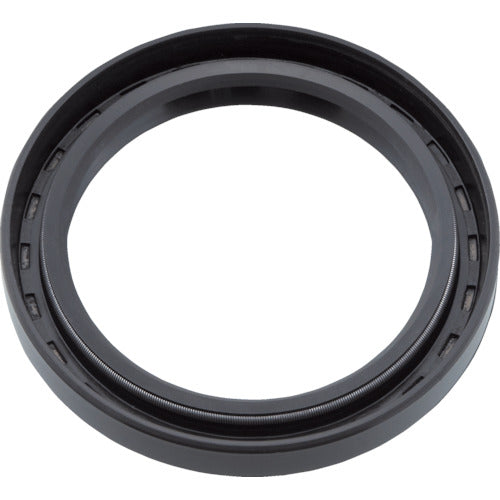

Oil Seal UE 8-22-7 MUSASHI

Small and easy to install or remove.Useful for reducing the size and weight of equipment.Used as a seal for rotating shaft when there is a need to keep out foreign object from the outside.For general industrial machine such as automobile, agricultural machinery, and construction machinery, etc.Shaft Diameter (mm):8Outer Diameter (mm):22Thickness (mm):7Operating temperature range: -25C to 120C(The applicable temperature for the rubber only. Use at a resistant temperature 20 to 30C lower during use.)Working Pressure: 0 to 0.03MPaRubber: Nitrile Rubber (NBR)Spring: Hardened Steel WireMetallic Ring: Cold Rolled Steel Plate
