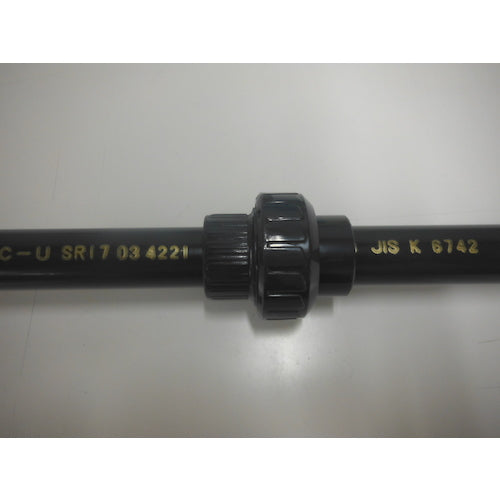

True Union Fitting UN50S ESLON

Resin union coupling.The main body and parts are made of hard polyvinyl chloride(PVC), therefore is excellent in chemical resistance.Can be removed from the piping after construction by loosening the union nut.Surface pipe dimension is compact and space saving piping is possible.Chemical plants chemical piping, semiconductor factory pure water piping, fishery factory seawater piping and food factory waste water treatment line.PVC Pipe Nominal Diameter:50D:107Dimension (mm) L:92Working temperature: 0 to 50Max allowable pressure: 1.0MPa(room temperature)Main body: Hard polyvinyl chloride(PVC)O-ring: EPDMTS typeNot compatible with Eslon ball valve.
